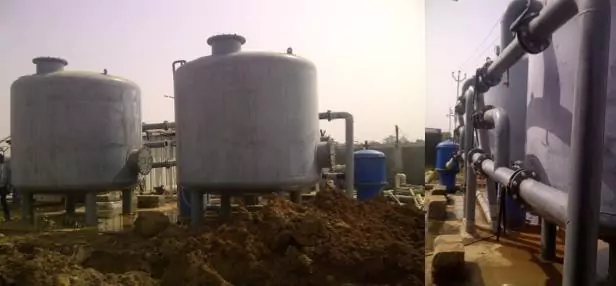

Activated Carbon Filter

Q: Where is an Activated Carbon Filter used?

ACF is commonly used in: RO pretreatment systems, Drinking water plants, Food & beverage industries, Pharmaceutical industries, Cooling tower makeup water, Process water treatment.

Q: What does an Activated Carbon Filter remove?

It helps remove: Chlorine, Bad odor, Color, Organic compounds, Pesticides (partially), Residual oxidants, Taste-causing impurities.

Q: What is the difference between PSF and ACF?

Pressure Sand Filter: Removes suspended solids, uses sand media, improves water clarity. Activated Carbon Filter: Removes chlorine, odor, color, uses activated carbon media, improves water quality and smell.

Q: How often should backwashing be done?

Backwashing is usually done: Every 2-5 days, When pressure drop increases, As per water quality and operating load.

Q: How do I know the carbon is exhausted?

Signs include: Chlorine detected at outlet, Bad odor returning, Color in treated water, Reduced treatment efficiency.

The company is an eminent Manufacturer, Supplier and Exporter of Activated Carbon Filter. Activated Carbon Filter we make available is designed to treat different forms of water. Our Activated Carbon Filters are efficient turbidity & TSS removal. Owing to our brilliant logistics network, we are capable of delivering bulk orders of the Filters within the promised timeframe. Buyers can obtain the Filters at reasonable rates from us.

Features:

Easy to operate
Resistance to corrosion
Better efficiency

Specification:

Vessel Diameter: 12 in. to 12 ft OD
Configuration: Single or multiple carbon adsorption systems
Operation Mode: In series or in parallel
Valve Options: Automatic or manual valves
Design Standard: ASME code or non-code vessels
Construction Material: Carbon steel or stainless-steel

Other Details:

Sand filter for removal of suspended solids up to minimum level
Multi Graded filter for high velocity flow rates of reduced area of filtration, in depth filtration
Activated Carbon Filter for removal of free chlorine
Phenol taste and odor as well as reduction COD/BOD
Gravity Filter for Housing & Hotels and municipal water supply

Applicable Industry

Municipal Water Treatment

Industrial Water Treatment

Livestock

Horticulture

Oil and Gas

Food and Beverage

Meat And Poultry Processing

Fishing Industry

Commercial and Institutional

Recreation and Leisure

Marine

Pulp and Paper Industry

Textile Industry

Desalination

Our Next Product

Multigrade Filter

The Multigrade Filters we make available are manufactured using quality-tested components and the latest technology.

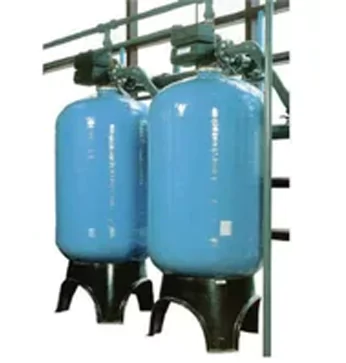

Water Softeners

Water Softeners are high weather resistance, leak proof design, and robust construction.

Frequently Asked Questions

What is an Activated Carbon Filter?

An Activated Carbon Filter is a water treatment unit that uses activated carbon media to remove chlorine, color, odor, taste, and organic contaminants from water.

Where is an Activated Carbon Filter used?

ACF is commonly used in:

RO pretreatment systems
Drinking water plants
Food & beverage industries
Pharmaceutical industries
Cooling tower makeup water
Process water treatment

What does an Activated Carbon Filter remove?

It helps remove:

Chlorine
Bad odor
Color
Organic compounds
Pesticides (partially)
Residual oxidants
Taste-causing impurities

Can ACF reduce TDS?

No. Activated Carbon Filters do not reduce TDS (Total Dissolved Solids). An RO or DM system is required for TDS reduction.

Why is ACF installed before an RO plant?

ACF removes chlorine and organic matter, which can damage RO membranes and reduce membrane life.

What is the difference between PSF and ACF?

Pressure Sand Filter	Activated Carbon Filter
Removes suspended solids	Removes chlorine, odor, color
Uses sand media	Uses activated carbon media
Improves water clarity	Improves water quality and smell

What is the operating pressure of an ACF?

Typically 2.5 to 7.0 kg/cm², depending on the design and application.

How often should backwashing be done?

Backwashing is usually done:

Every 2-5 days
When pressure drop increases
As per water quality and operating load

What is the life of activated carbon media?

Activated carbon generally lasts 12 to 24 months, depending on chlorine level, organic load, and operating conditions.

How do I know the carbon is exhausted?

Signs include:

Chlorine detected at outlet
Bad odor returning
Color in treated water
Reduced treatment efficiency

Can ACF remove bacteria or viruses?

Activated carbon is not a primary disinfection system. Additional UV or chemical disinfection may be required.

What types of activated carbon are used?

Common types:

Coconut shell carbon
Coal-based carbon
Wood-based carbon

For water treatment, coconut shell activated carbon is widely preferred.

What flow rate should be selected?

The flow rate depends on:

Required water quantity
Contact time
Water quality
Chlorine concentration

Vasudev Water Solution designs ACF systems as per customer requirements.

What maintenance is required?

The following maintenance is required:

Regular backwashing
Checking inlet/outlet pressure
Testing chlorine at outlet
Replacing carbon media when exhausted

Can ACF be supplied in FRP or MS vessels?

Yes. Available in:

FRP
MS Epoxy Painted
SS304
SS316

What is the recommended contact time?

Typically 5-10 minutes Empty Bed Contact Time (EBCT) for effective chlorine and organic removal.

Is automatic operation available?

Yes. ACF can be supplied with:

Manual valves
Multiport valves
Automatic valves
PLC-based automatic backwash systems

Why choose Vasudev Water Solution for Activated Carbon Filters?

Customized design
High-quality activated carbon
Better chlorine removal
Easy maintenance
Automation options
Service support across Vapi, Silvassa, Daman & Gujarat
